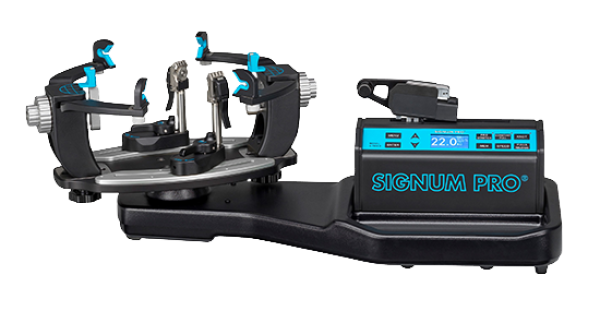

Signum Pro S-7000 Professional Tabletop Stringing Machine

Professional stringing technology in a compact tabletop model

The tabletop version of the Signum Pro S-7000 Professional combines the precise stringing technology of the S-7000 series with a compact design for use on a suitable, stable work surface. Its electronic linear pull tensioning system with constant tension adjustment, flexibly adjustable 6-point mounting system and semi-automatic dual clamp system support accurate and comfortable operation.

Key benefits at a glance:

• electronic linear pull tensioning system with constant tension adjustment

• tension range from 7 to 40.8 kg or 15 to 90 lbs

• tension adjustment in fine increments of 0.1 kg or 0.1 lbs

• flexibly adjustable 6-point mounting system

• semi-automatic dual clamp system with automatically releasing clamp bases

• high-resolution display with extensive adjustment and memory functions

• compact tabletop design without a fixed stand

Electronic linear pull system with constant tension adjustment

The processor-controlled linear pull system uses precision sensors and continuously readjusts the selected tension during the pulling process. This helps maintain controlled tension as the string settles.

The required tension can be set in increments of 0.1 kg or 0.1 lbs. The pulling process can be started either by lightly tapping the gripper jaws when inserting the string or by pressing the quick-start button.

The high-resolution display and large control panel provide access to functions including pre-stretch, knot mode, different pulling speeds, sound settings and memory positions for frequently used values.

Flexibly adjustable 6-point mounting system

The revised 6-point mounting system secures the racket frame at six positions. Four lateral V-shaped supports can be adjusted to suit different frame profiles. Wide plastic supports at the head and throat distribute the forces over a larger area and help hold the frame securely and gently.

The side support arms and central mounting towers can be adjusted continuously in pairs, allowing different frame shapes to be mounted without additional tools.

Semi-automatic dual clamp system

The dual clamp system features rigid 14 mm shafts and semi-automatic clamp bases. When the upper clamp is lowered into the base, the locked base releases automatically. A multi-ball-bearing locking system supports precise positioning of the clamps.

Curved guide rails made from a low-friction special alloy allow the clamps to move smoothly and support an efficient workflow.

Compact tabletop model for a stable work surface

The tabletop model is designed for users who want to operate a high-performance electronic stringing machine on an existing workbench or stable table. Without a fixed stand, it can be integrated more easily into compact working areas.

Unlike the floor-standing version, this model does not include the height-adjustable stand, string reel holder or electronic turntable brake.

Package contents

• Signum Pro S-7000 Professional tabletop model

• 200 m reel of Signum Pro Andromeda string

• starting clamp

• German operating instructions

Technical specifications

• Drive system: electronic linear pull

• Tension adjustment: constant

• Tension range: 7–40.8 kg / 15–90 lbs

• Adjustment increments: 0.1 kg / 0.1 lbs

• Mounting system: 6-point mounting system

• Clamp system: semi-automatic dual clamp system

• Power supply: 100–240 V AC

• Base plate dimensions: approx. 72 × 26 cm

• Space required with the racket handle aligned lengthwise towards the motor: approx. 92 × 32 × 31 cm
